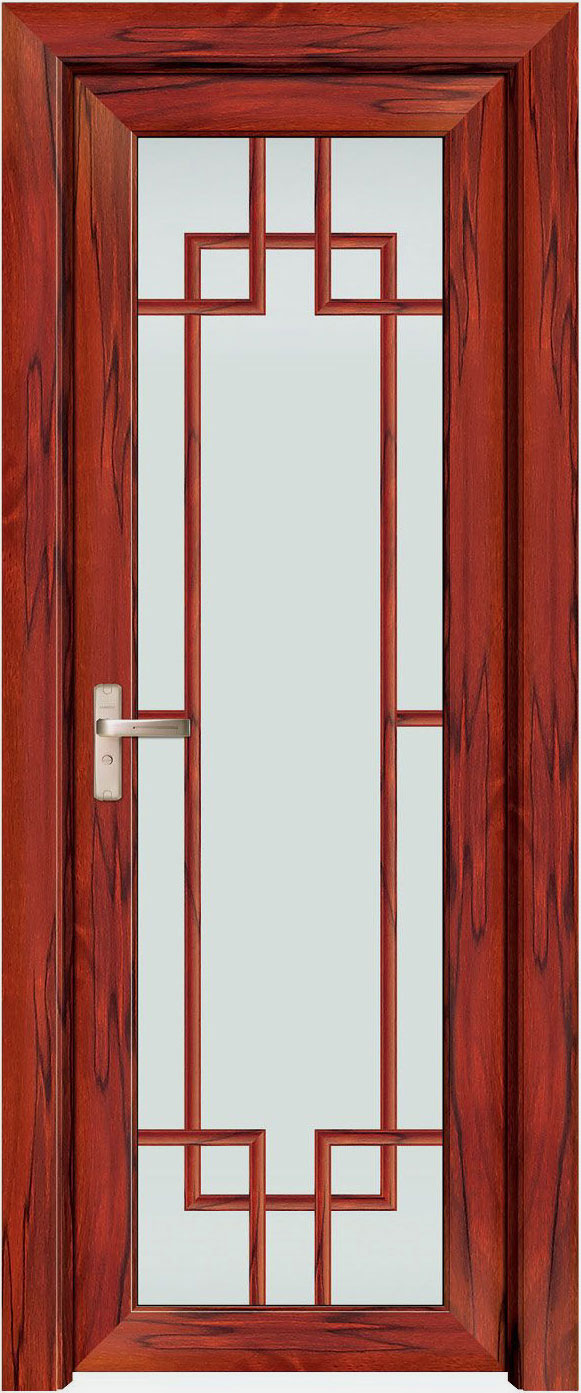

K149 Xinhao 85 Flat door

Single package flat door Frame 41mm (see light)
Wrapper width / high occupation wall The edge height occupies the wall: 44 The edge width occupies the wall: 44
Double-bag flat door Frame 47mm (see light)
Wrapper width / high occupation wall The edge height occupies the wall: 37 The edge width occupies the wall: 37
Light enterprise width 85mm
Standard hardware Standard silver lock (with key)
Lattice bar 12*22 Wide grid
Glass standard 4+15A+4
Color Red acid branch
Technology Lattice bar

Performance Parameter:

Thermal insulation performance 3.7(w/m².k)
Sound insulation performance 35dB
Watertight performance Level 6
Airtight performance Level 8
Resistance to wind pressure Level 9 / 5000PA
· The appearance is fashionable, the golden proportion design, the three-dimensional look is strong, more conforms to the modern people's aesthetic consciousness.
· High-strength aluminum alloy structure, waterproof and moisture-proof.
· Can do one-sided cover, double-sided cover.
